Best Cast Iron Fireplace Grate (2026): 5 Hearth Grates Compared
Five fireplace grates compared by cast iron versus steel build, bar count, floor clearance, frame dimensions and stated hearth performance.
By FirewoodGearHQ Editorial
Updated October 9, 2026
Finding the best cast iron fireplace grate comes down to choosing between authentic poured cast iron and heavy welded steel bar construction. A quality grate elevates burning firewood off the hearth floor to improve bottom airflow, draft smoke up the chimney, and protect fireplace brick from direct flame heat. This guide compares five top fireplace grates by material build, bar count, frame dimensions, and hearth clearance.
FirewoodGearHQ earns a commission when you buy through links on this page, at no extra cost to you. Affiliate disclosure.

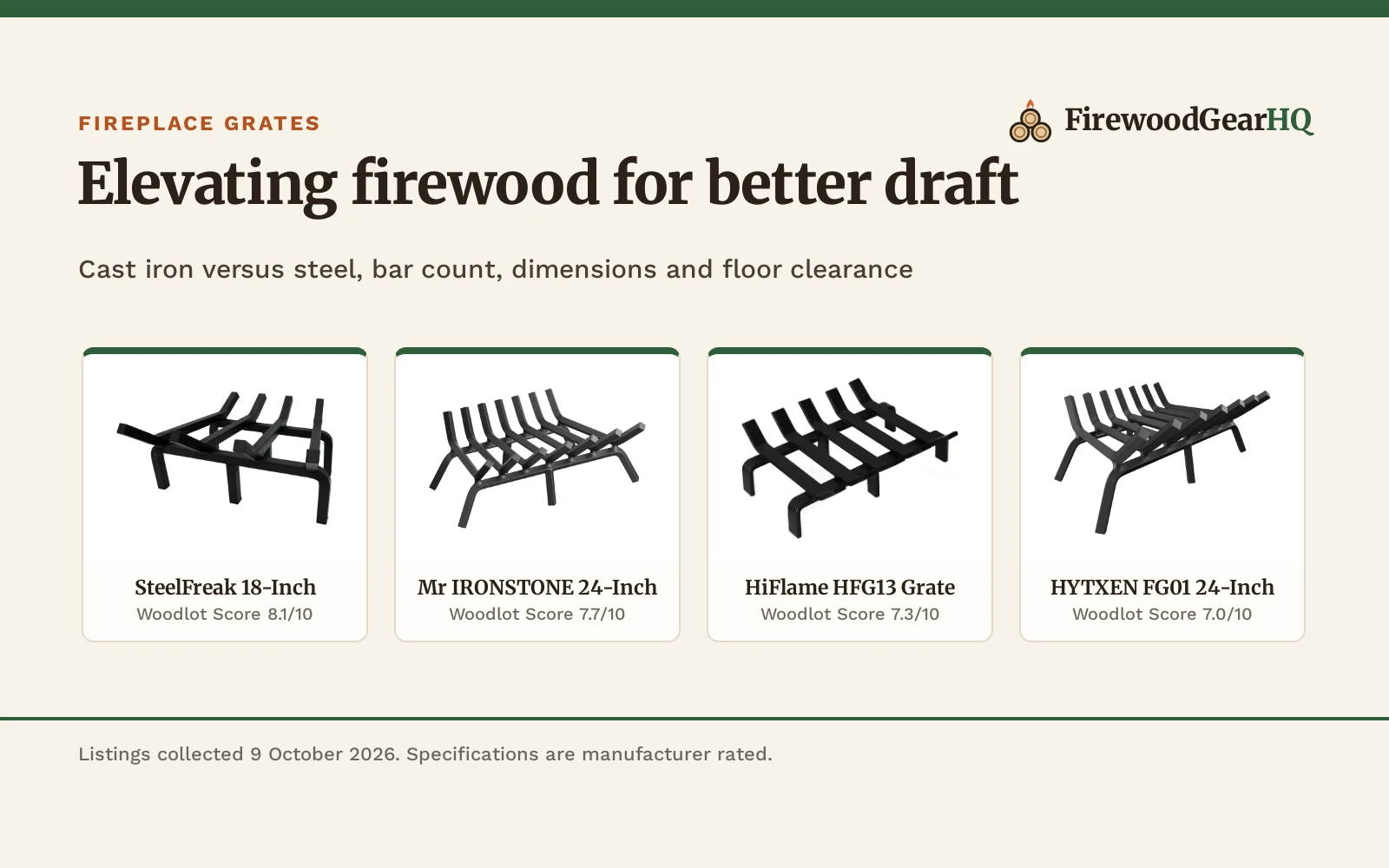

Quick picks
- Best Overall SteelFreak 18-Inch: Heavy-duty 18 in all-steel grate weighing 17.86 lb, tapered to fit fireplace walls, Made in USA. Check price
- Best 24-Inch Mr IRONSTONE 24-Inch: 24 in steel bar grate with 6 legs to prevent sagging, 4 in floor gap and 220 lb shelf capacity. Check price
- Best Compact HiFlame HFG13 Grate: 13 by 10 in all-steel grate weighing 9.37 lb, built for wood stoves, small hearths or fire pits. Check price
- Best 7-Bar Frame HYTXEN FG01 24-Inch: 24 in wide grate with 7 solid steel bars of 3/4 in diamond steel and 6 support legs. Check price
- Traditional Cast Iron Panacea 15424 24-Inch: Cast iron grate listed at 24 in with bottom openings to drop embers into a hot coal bed. Check price
Compare the picks
| Model | Woodlot Score | Material | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|
| SteelFreak 18-Inch | 8.1/10 | All-steel | 18 in | 14 in | 6.75 in | 17.86 lb |
| Mr IRONSTONE 24-Inch | 7.7/10 | Solid steel / iron | 24 in | 15 in | 7 in | 12.1 lb |
| HiFlame HFG13 Grate | 7.3/10 | Solid steel | 10 in | 13 in | 4 in | 9.37 lb |
| HYTXEN FG01 24-Inch | 7.0/10 | Wrought iron / alloy steel | 24 in | 15 in | 7 in | Not stated |
| Panacea 15424 24-Inch | 6.1/10 | Cast iron | 24 in (title) | 5 in (table) | 4 in (table) | 2.2 lb (table) |
Specifications are manufacturer rated, collected 9 October 2026. None of these listings states a warranty term with a concrete duration, and none names a safety certification standard, so all five score zero for safety and zero for warranty.
The picks
| Award | Product | Woodlot Score About the HQ ScoreThe Woodlot Score runs from 0 to 10 and weighs performance (35%), build (25%), value (25%), safety (10%, where it applies) and warranty (5%), using only what the manufacturer and the listing publish. How we pick › | |
|---|---|---|---|
SteelFreak Super Heavy Duty Steel Fireplace Grate
|
8.1/10 | Buy | |
Mr IRONSTONE Fireplace Grate 24 inch Solid Steel
|
7.7/10 | Buy | |
HiFlame Fireplace Log Grate Heavy Duty Solid Steel
|
7.3/10 | Buy | |
Fireplace Grate 24 Inch, Fireplace Grates Heavy
|
7.0/10 | Buy | |
Panacea 15424 Cast Iron Fire Grate, Black
|
6.1/10 | Buy |
SteelFreak Super Heavy Duty Steel Fireplace Grate
An 18-inch all-steel fireplace grate weighing 17.86 pounds, built with a tapered frame that is wider in front than in back to fit standard fireplace walls.
Pros
- 17.86 lb all-steel construction provides a heavy and sturdy build
- Tapered profile is wider in front than back to match tapered fireplaces
- Dimensions of 18 inches wide by 14 inches deep fit standard hearth openings
- Listing states it is made in the USA by Federated Trade
Cons
- No warranty term is stated
- All-steel fabrication rather than traditional cast iron
- 18-inch width will not span larger fireplace openings
- Listing does not state bar spacing or clearance above the hearth floor
Mr IRONSTONE Fireplace Grate 24 inch Solid Steel
A 24-inch steel fireplace grate with seven solid steel bars, six support legs including two center feet, and a four-inch clearance above the hearth floor.
Pros
- Six steel legs including two center feet to prevent sagging under log weight
- Four-inch clearance above the hearth floor allows bottom airflow for fires
- Seven solid steel bars with a V-shaped frame to hold logs in place
- Spec table lists a 220-pound shelf weight capacity
Cons
- No warranty term is stated
- Listing states solid steel and wrought iron rather than poured cast iron
- Spec table swaps width and depth relative to the bullet dimensions
- 24-inch width is too wide for smaller hearths or wood stoves
HiFlame Fireplace Log Grate Heavy Duty Solid Steel
A compact 13-inch by 10-inch all-steel fireplace and wood stove grate weighing 9.37 pounds, featuring double support construction and heat-resistant paint.
Pros
- Solid 9.37-pound weight for a compact 13-inch by 10-inch frame
- Double support design with gas shielded welding
- Coated with heat-resistant paint suitable for stoves and fireplaces
- Compact footprint fits wood stoves, small hearths or outdoor fire pits
Cons
- No warranty term is stated
- Steel construction rather than poured cast iron
- 13-inch length and 10-inch width limit log capacity to smaller wood splits
- Four-inch height provides lower floor clearance than taller hearth grates
Fireplace Grate 24 Inch, Fireplace Grates Heavy
A 24-inch hearth grate featuring seven 3/4-inch diamond-shaped solid steel bars, six support legs, and a four-inch clearance above the fireplace floor.
Pros
- Seven solid steel bars made of 3/4-inch diamond-shaped steel rods
- Six support legs including two middle feet to resist sagging
- Four-inch gap between the grate and the hearth floor promotes airflow
- 24-inch by 15-inch frame provides generous space for firewood logs
Cons
- No warranty term is stated
- Item weight is not stated in the listing or spec table
- Title claims cast iron while bullets and specs state solid steel and wrought iron
- Spec table lists the finish as lacquered rather than high-temperature paint
Panacea 15424 Cast Iron Fire Grate, Black
A traditional 24-inch cast iron fire grate designed with bottom openings that let burned embers fall through to build a hot coal bed beneath firewood.
Pros
- Authentic cast iron fire grate construction
- Bottom openings allow burned embers to drop through and create a hot coal bed
- Designed to elevate firewood to protect hearth floors from direct flames
- Listing has been active on Amazon since July 23, 2008
Cons
- No warranty term is stated
- Spec table lists dimensions as 4 x 5 x 5 inches despite the 24-inch title
- Spec table lists weight at only 2.2 pounds, conflicting with durable cast iron
- Listing does not state bar count, leg count or maximum log capacity
How we scored them
Each grate is scored out of 100 on performance, build, value, safety and warranty, using only what the listing publishes. The weights follow our Woodlot Score evaluation standards.
| Product | Woodlot Score | Perf. /35 | Build /25 | Value /25 | Safety /10 | Warranty /5 |
|---|---|---|---|---|---|---|
| SteelFreak 18-Inch | 8.1 | 30 | 22 | 20 | n/a | 0 |
| Mr IRONSTONE 24-Inch | 7.7 | 29 | 20 | 20 | n/a | 0 |
| HiFlame HFG13 Grate | 7.3 | 27 | 20 | 19 | n/a | 0 |
| HYTXEN FG01 24-Inch | 7.0 | 28 | 18 | 18 | n/a | 0 |
| Panacea 15424 24-Inch | 6.1 | 23 | 15 | 16 | n/a | 0 |
Scores run from 0 to 10. Safety counts only for powered gear or where the listing states safety features; where it does not apply, the score is taken over the remaining 90 points.
Buying guide: choosing the best cast iron fireplace grate
Cast iron versus solid steel
Shoppers searching for cast iron fireplace grates frequently encounter heavy-duty welded steel models. Authentic cast iron is poured into a mold, providing high resistance to burnout and holding heat well as coals accumulate. Solid steel grates, often fabricated from diamond-shaped steel rods or heavy bar stock, resist cracking if logs are dropped onto them. When comparing options, check whether the listing describes poured cast iron or welded steel bars.
Sizing your fireplace grate
Fireplace dimensions vary, and placing an oversized grate inside a firebox can restrict airflow and damage masonry. Tapered grates are built wider in front and narrower in back to match the inward slant of standard fireplace walls. Measure the width across the front of your fireplace, the depth from front to back, and the width along the back wall before ordering. If you need a lower-cost option for a secondary hearth, explore our guide to the cheap fireplace grate market.
Floor clearance and chimney draft
Lifting firewood off the hearth floor is essential for an efficient fire. Floor clearance allows combustion air to enter from underneath the log pile, feeding oxygen directly to the base of the fire and helping chimney draft draw smoke up the flue. Grates with generous floor gaps also make it easier to sweep away cool ashes without dislodging hot coals. Pairing your grate with a fireplace screen keeps sparks contained while the draft pulls air inward.
Bar spacing and coal bed formation
The arrangement and spacing of grate bars dictate how firewood burns down. Tightly spaced bars or cast iron baskets catch falling embers, concentrating heat into a glowing coal bed that sustains long burns. Wider bar layouts allow burned ash to drop quickly to the floor, which helps maintain aggressive combustion for hotter fires. After a fire has completely cooled, an ash vacuum for wood stoves and fireplaces simplifies clearing ash buildup from beneath the grate bars.
Seasoned firewood and hearth safety
Even the heaviest grate will struggle to maintain clean combustion if you burn wet or unseasoned logs. Moisture inside green wood wastes heat energy through steam generation, creating excess smoke and creosote buildup inside your chimney flue. Checking split logs with a firewood moisture meter ensures your firewood is properly dried. Review our reference on how long to season firewood to plan drying schedules across different wood species.
Wear eye protection and gloves for cutting, splitting and handling, follow every tool's manual, install stoves to code, and have the chimney inspected and cleaned every year. See EPA Burn Wise and NFPA heating safety. Read our Safety Disclaimer.
Frequently Asked Questions
Do you need a fireplace grate?
A fireplace grate is strongly recommended for open wood-burning fireplaces. Elevating logs off the firebrick hearth floor allows air to circulate under the wood, producing hotter combustion, reducing smoky backdrafts, and protecting the fireplace floor from intense direct flame contact.
What type of fireplace grate is best?
The best type depends on how frequently you burn firewood. Heavy-duty welded solid steel grates with center support feet are ideal for heavy log loads because they resist sagging. Poured cast iron grates excel at capturing glowing embers to create a long-lasting coal bed for continuous heat.
What size fireplace grate do I need?
Measure the front width, rear width, and depth of your fireplace floor. The grate should sit comfortably inside the firebox with clearance around all sides to allow proper draft circulation, prevent contact with the firebrick walls, and ensure your fireplace screen or doors close completely.
Why do some fireplace grates sag in the middle?
Prolonged heat softens metal under the weight of heavy firewood logs. Grates spanning wide openings without center support legs can sag downward over time. Choosing a model with dedicated middle feet distributes firewood weight across the hearth floor and helps prevent deformation.
Is cast iron or steel better for a fireplace grate?
Cast iron tolerates sustained heat without warping and holds warmth well, but it can be brittle if struck with heavy logs. Solid welded steel bars withstand impact and rough loading, making steel very durable for active burning as long as the bars are sufficiently thick.
Related guides
See our stove accessories hub for additional hearth gear. For budget hearth equipment, read our review of the cheap fireplace grate selections and best fireplace screens. To keep your hearth tidy, compare canister cleaners in our best ash vacuum for wood stoves guide. For firewood preparation, consult our guide on how long to season firewood and check split pieces with the best firewood moisture meter.
About the author
The FirewoodGearHQ editorial team researches firewood and wood heating equipment from published specifications, ratings and warranty terms, and scores every pick the same way. We do not run our own product trials.
