Best Wall Thimble for a Pellet Stove (2026): 4 Picks

Compare the picks

Specifications are manufacturer rated, as published on each listing and collected 22 October 2026. Where a listing states a figure two ways, the table shows both.

How we scored them

Each thimble is scored on performance, build, value, safety and warranty, using only what the listing publishes. The weights are published on the site’s How We Pick page.

Scores run from 9.2 to 9.8: each product’s point total is placed on that range, so more points always means a higher score.

A buying guide for best wall thimble for a pellet stove

Match the pipe diameter

Three of the four picks are 3-inch thimbles: both DuraVents and the Selkirk 243460, each engineered for 3-inch pellet pipe. The Selkirk Sport 244460 is the only 4-inch thimble here. A thimble that does not match the pipe is the wrong thimble, so confirm the vent diameter first and shop inside that size. Nothing in these listings suggests a 3-inch thimble can serve a 4-inch pipe.

The DuraVent listings tie their thimbles to 3-inch PelletVent Pro pipe by name, while the Selkirk listings speak of Type L pellet vent in their size. Pipe systems and thimbles are usually kept within one maker’s family so the joints seat the way they were designed to. If the vent run mixes brands, the thimble listing is the place to check compatibility, not the stove manual.

Wall thickness and the telescoping fit

Two listings state a wall range outright. The DuraVent 3PVP-WT telescopes to fit walls from 3-7/8 inches to 8 inches thick, built to sit between standard wall studs. Both Selkirk listings state a telescopic design for walls 5 inch to 9 inch thick. The dual-function DuraVent states no wall range; its spec table gives a nominal wall thickness of 0.0625 inches and a 10 inch item length, which describe the thimble itself. Measure the wall and buy the range that covers it.

A telescoping thimble earns its keep twice: it bridges the wall without shimming, and it centers the pipe so the clearance stays even all the way through. The Selkirk listings call this out directly, saying their thimbles center the pipe between the walls. If the wall falls outside every stated range, that is a sign to stop and ask the maker rather than packing the gap with whatever is in the shop.

Clearance and listings

The DuraVent 3PVP-WT is the only pick with a stated safety listing: UL-listed, with a certified 1-inch clearance to combustibles through the wall. The Selkirk listings state that their thimbles maintain airspace clearance with combustibles and center the pipe between the walls, without a stated figure. The dual-function DuraVent states neither a listing nor a clearance figure. Read the exact words: a certified clearance is a rated number, and an airspace clearance statement is the maker’s description of the design.

Clearance is the reason the thimble exists at all, so give it the weight it deserves when you compare. A UL listing with a certified figure, like the DuraVent’s, is the strongest statement in this set; a design description of airspace clearance, like the Selkirks’, is weaker but still a deliberate design choice. A listing that says nothing about clearance is not claiming anything, and the score reflects that. When the inspector or the insurer asks, the listing with the figure is the one that answers.

The air intake question

Pellet stoves need combustion air as well as an exhaust path, and the dual-function DuraVent answers both through one wall assembly. It includes a 2-inch diameter flexible intake hose that expands up to 5 feet, plus connection clamps, which the listing says eliminates cutting a separate hole for fresh air. The other three picks are vent-only thimbles: if the stove needs outside air, that is a second penetration or a separate kit, like the outside air kits linked below.

Whether the intake matters depends on the stove and the house. A tight, well-sealed house starves a stove of combustion air faster than a drafty one, and some stoves simply require an outside air connection. The dual-function thimble bundles that decision into the vent penetration, which is one fewer hole to flash and seal. For a stove that draws room air, the vent-only picks are the simpler and cheaper path.

Black or stainless

The DuraVent picks come in black, the 3PVP-WT with a black painted finish over stainless and other metals, the dual-function model in aluminum. The Selkirk 243460 is 304 stainless steel with a paintable galvanized outer wall in black. Finish is mostly about looks and touch-up: a painted thimble can be matched to the room, and stainless weathers a damp chase better. Either way, the finish is the least important line in the spec table; the diameter, the wall fit and the clearance rating decide first.

Venting safety. A pellet stove vent runs hot and passes through combustible construction: that is exactly the job a wall thimble exists for. Follow the maker’s instructions and local code for the penetration, keep smoke and carbon monoxide alarms working in the room, and have the chimney and venting inspected each year. Seasoned pellets and a clean vent keep the whole system behaving.

Around the Woodpile

• Check the parts when the box arrives: the insulation ring on both DuraVent picks, and the flex hose and clamps on the dual-function model.
• Confirm the pipe diameter before ordering: three picks are 3-inch and one is 4-inch, and they are not interchangeable.
• Store the thimble dry and out of the weather until install day; the Selkirk listings note a rolled male end with no sharp edges to catch.
• Plan the wall penetration against the maker’s instructions and local code, not against a video; when the wall is anything but standard, ask a certified pro.

Frequently Asked Questions

What is a wall thimble for a pellet stove?

A wall thimble is the pass-through fitting that routes pellet vent pipe through a wall, keeping the required clearance between the hot pipe and combustible construction. The DuraVent 3PVP-WT, for example, is built to maintain a certified 1-inch clearance to combustibles where the pipe crosses the wall.

Do I need a thimble when the vent goes through a wall?

The Selkirk listings say their thimbles must be used for all through-the-wall installations involving combustible construction. For a non-combustible wall the listings do not say, so check the stove and vent maker’s guidance and local code for that case. Either way, an unprotected pipe through a combustible wall is exactly the hazard the thimble is built to prevent.

3-inch or 4-inch thimble?

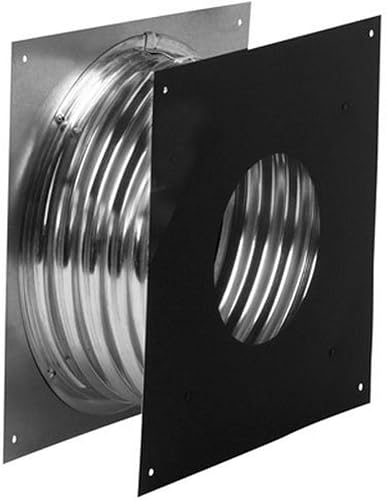

Match the thimble to the vent pipe. Three picks here are 3-inch and one, the Selkirk Sport 244460, is 4-inch. The size of the stove’s vent collar decides it; the listings give no way to adapt one size to the other. When the stove calls for 4-inch venting, the 4-inch Selkirk is the only pick in this set that fits.

How is a wall thimble installed?

This guide does not give installation steps. The listings describe telescoping thimbles that adjust to the wall, and the safe move is the maker’s instructions plus local code, with a certified installer when the wall or the vent run is anything but standard. A thimble is a life-safety fitting, not a weekend experiment.

What does the insulation ring do?

Both DuraVent listings include a factory insulation ring that seals the gap around the pipe where it passes through the wall. The stated purpose is to stop cold outdoor drafts and air infiltration from entering the living space, not to add clearance.

Can one thimble fit any wall thickness?

No. The DuraVent 3PVP-WT covers 3-7/8 inches to 8 inches, the Selkirks cover 5 inch to 9 inch, and the dual-function DuraVent states no range at all. Measure the finished wall, inside face to outside face, and buy the thimble whose range covers it.
